Diamond Grinding

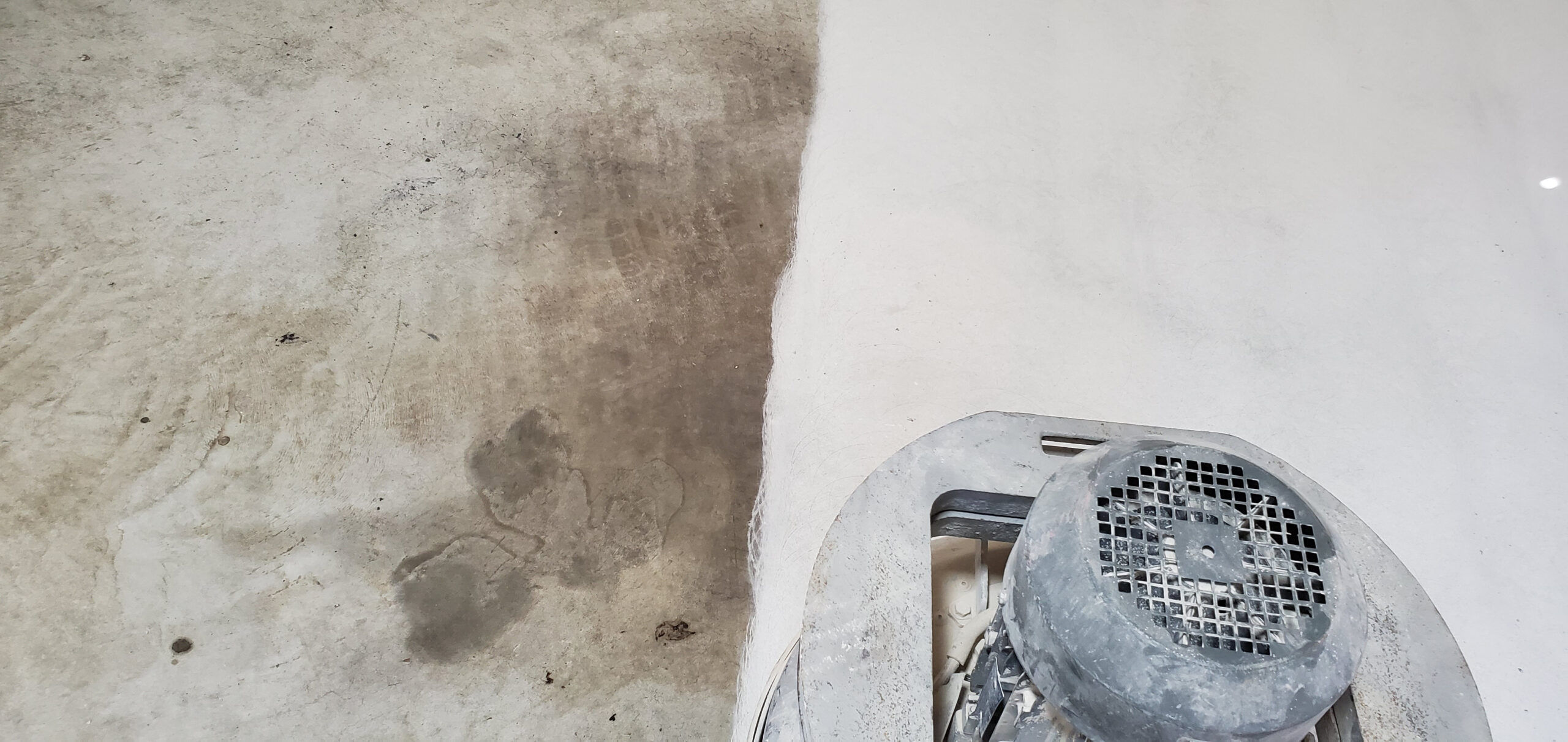

This method utilizes planetary floor grinders equipped with steel grinding segments infused with man-made diamonds to flatten a concrete slab, while profiling the surface for sealer or thin-mil coating systems. Other tooling can be attached to the machines in order to perform tasks such as honing, polishing, and also adhesive and coating removal.
Rough Pricing Of Our Most Commonly Requested Diamond Grinding Processes Performed Locally:
Prep For Thin-Mil Epoxy (Bare Concrete)
1,000sqft – $1.50 per square foot
10,000sqft – $1.00 per square foot
100,000sqft – $0.85 per square foot
Diamond grinding at 30 grit to achieve a CSP of 2-3, including edges. Smaller areas are then vacuumed, larger areas are dedusted with a shot blaster.
Prep for Concrete Sealer (Bare Concrete)
1,000sqft – $3.25 per square foot
10,000sqft – $2.25 per square foot
100,000sqft – $2.00 per square foot
Diamond grinding at 30 grit, then 70 grit. Edges ground at 60 grit. An auto scrubber is then utilized to clean the slab.
Floor Paint Removal & Prep For Thin-Mil Epoxy
1,000sqft – $2.00 per square foot
10,000sqft – $1.50 per square foot
20,000sqft – $1.25 per square foot
Diamond grinding at 30 grit (2 passes) to achieve a CSP of 2-3, including edges. Smaller areas are then vacuumed, larger areas are dedusted with a shot blaster.
Epoxy Flooring Removal & Prep For Thin-Mil Epoxy
1,000sqft – $3.25 per square foot
10,000sqft – $2.50 per square foot
20,000sqft – $2.00 per square foot
Grinding with PCD segments, then diamond grinding at 30 grit to achieve a CSP of 2-3, including edges. Smaller areas are then vacuumed, larger areas are dedusted with a shot blaster.
Carpet Adhesive Removal & Prep For Thin-Mil Epoxy
1,000sqft – $3.00 per square foot
10,000sqft – $1.75 per square foot
20,000sqft – $1.35 per square foot
Carbide scraper segments are utilized to remove adhesive. Then diamond grinding at 30 grit to achieve a CSP of 2-3, including edges. Smaller areas are then vacuumed, larger areas are dedusted with a shot blaster.
Increase Profile Of Surface (For Traction)
1,000sqft – $6.25 per square foot
10,000sqft – $3.50 per square foot
20,000sqft – $2.75 per square foot
Bush hammer segments are utilized to achieve an aggressive, but consistent profile on a concrete slab. An auto scrubber is then utilized to clean, and a coat of clear densifier is applied to prevent dust tracking.
